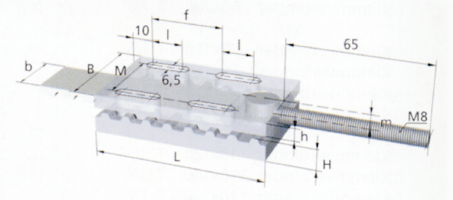

Tension Plate Type L

Tension plates are used when you need to tension the belt at the end connections. LE is the length of the belt which can be
clamped in the tension plate of length L.
Type L plates have slotted holes on the top and bottom and are made of Aluminium.

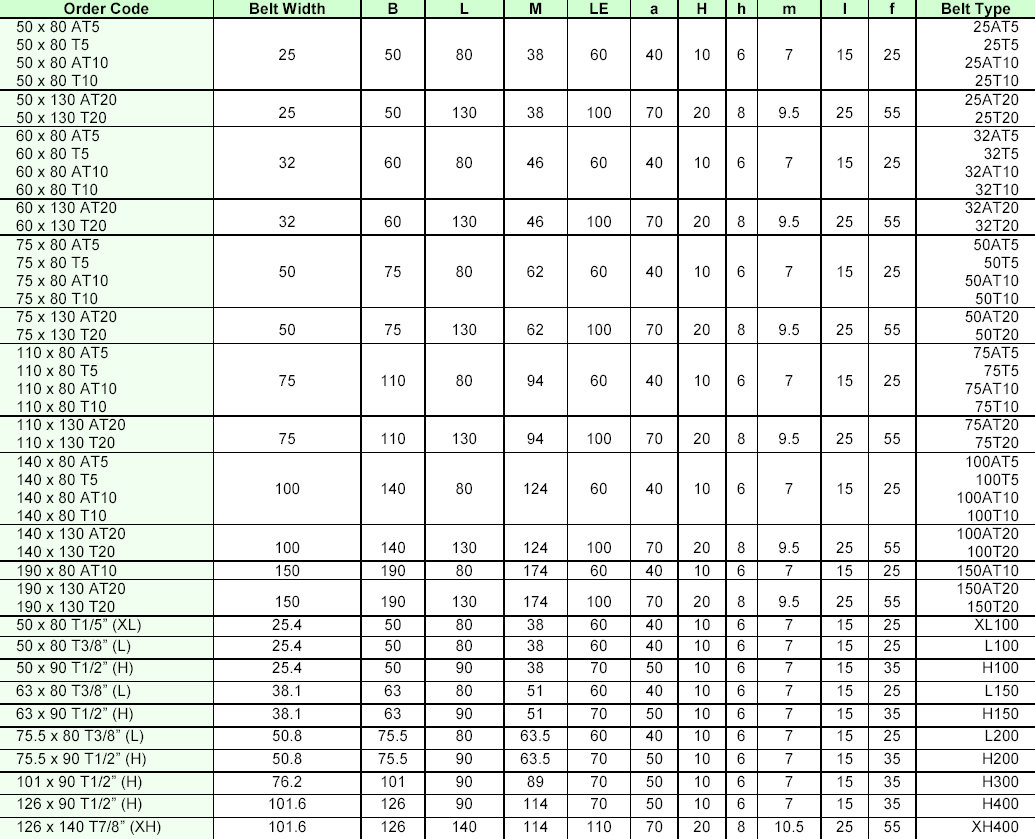

Ordering Example:   50 x 80 AT5 Type L

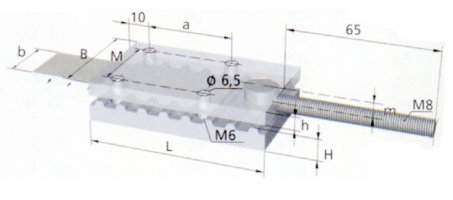

Tension  Plate Type G

Type G tension plates have M6 tapped holes in the toothed plate and 6.5mm DIA holes in the cover plate.
They are made of aluminium.


Ordering Example:   50 x 80 AT5 Type G
